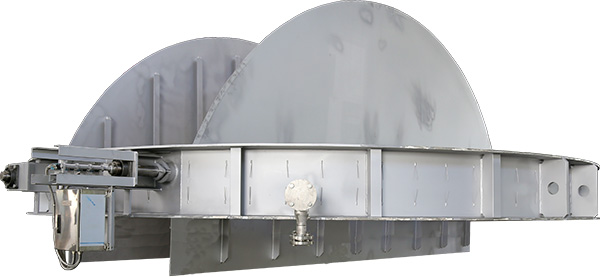

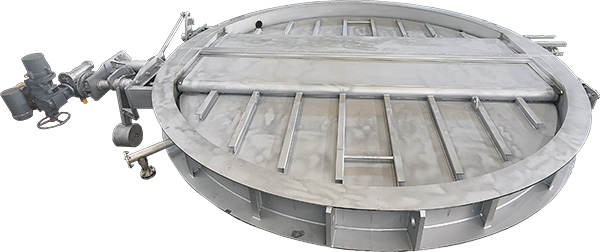

PRODUCT

  • Placed in the upper part of a factory's chimney to shut out high-temperature air or gas.
  • Blocking rain, wind, etc. by closing the Stack Damper when HRSGs' maintenance is needed.
  • Releasing the pressure when overpressure (120 mmH2O) occurs in HRSGs by opening automatically.
  • The slanted blade prevents rainwater from pooling.
Model VCAD
Type Louver Damper
Applicable Fluids Air, Gas
Temp. Range 0 ~ 300 ℃
Design Pressure 0.05 bar
Size 1000 ~ 10000 mm
Material Carbon Steel
Tightness 99.5 %
Actuator Electro-Hydraulic Actuator, Motor Actuator
